ROUND BALER MODELS

‍

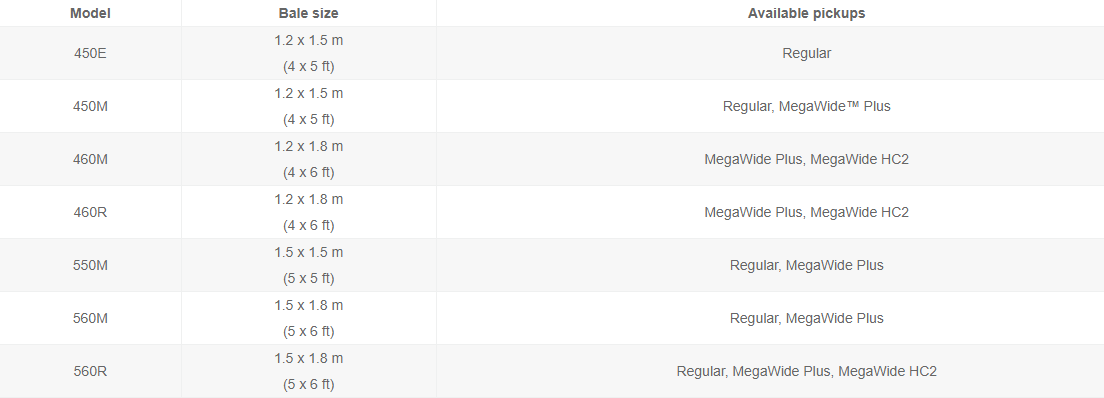

ROUND BALER MODEL SPECIFICATION

*NOTE: The 550M Round Baler will only be available in dry hay and silage configurations.

A MegaWide Plus pickup is available on 450M, 550M, and 560M Round Balers. It is base equipment on the 450M Silage, 550M Silage, 460M, 460M Silage, and 560M Silage Balers. The MegaWide Plus pickup is also incorporated into the new MegaWide High Capacity and Cutting (HC2) high-capacity precutter feed system.

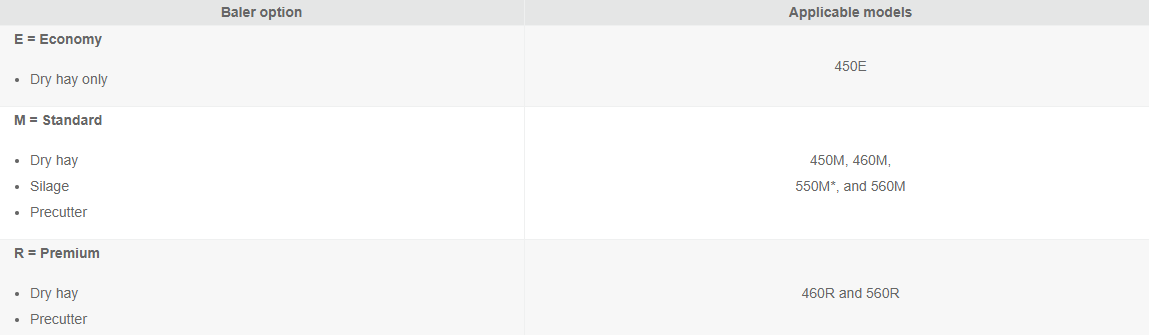

0 Series Balers have implemented specification levels for all models in the baler lineup, similar to what was done when the 459E was introduced. Pickup options will remain the same for the model's equivalent specification. The precutter pickups will have the same MegaWide Plus pickups that will be offered in mid specification (M) or the premium specification (R) balers.

MegaWide Plus pickups make baling easier, especially in wide or windblown windrows, and increases productivity; more hay volume means more bales per hour.

• Flare-to-flare width of 1.8 m (5.9 ft) on balers with a 1.2 m (4-ft) wide bale chamber
• The MegaWide HC2 Precutter feed system on the 460M offers a 2.2 m (7.2-ft) wide flare-to-flare pickup width; 20 percent wider than our previous offerings on the 1.2-m (4-ft) wide balers.
• MegaWide Plus pickup makes it easier to produce better-shaped bales and improves crop pickup in wide, windblown, or scattered windrows
• Mega teeth, located at the ends of the pickup, pull crop around the flares when baling wide or windblown windrows
• MegaTough pickup teeth provide greater strength and durability
• Exclusive square design handles high-impact loads without yielding
• Sturdy toothbar design
• Self-adjusting roller baffle
• Spiral rotor-feed system improves feeding in all crop conditions
• Chain driven for positive feeding
• Cut-out clutch protected
• Semi-pneumatic gauge wheels

Mega and MegaTough pickup teeth are base equipment:

• Mega teeth, at the ends of the pickup, are heavy-duty for long life and improved crop retrieval
• MegaTough pickup teeth are designed to withstand the harshest baling conditions and provide long service life

The 1.2-m (4-ft) balers use a full-length, reinforced toothbar design.

The 1.5-m (5-ft) balers use a heavy, C-channel construction. The pickup toothbars are divided into two half-sections that mount to a center spider for increased strength and even crop feeding.

Available only on the MegaWide Plus pickup, the patented roller baffle is self-adjusting and produces smoother crop flow across the pickup. The roller also improves crop pickup in small windrows and prevents roll ahead of crop.

When combined with the MegaWide Plus pickup, this feeding system allows increased ground speed with less chance of plugging for increased productivity in all field conditions.

• Self-adjusting
• Smooths crop for even flow across pickup
• Allows for faster ground speed with less chance of plugging
• Increases operator productivity

The MegaWide Plus pickup uses a rotor-feeding assembly, which mounts behind the pickup for smooth and even crop flow into the bale chamber.

• Augers and rotor teeth are driven on the same shaft, eliminating the need for additional drives.
• The rotor is fixed to the baler frame, allowing positive and even feeding into the bale chamber.
• Large-diameter converging augers have high crop-flow capacity, and auger scrolls help to force crop into the chamber.
• Spiral design enhances feeding in uneven windrows and reduces loading on the rotor.

Rotor strippers allow crop to be lifted from the rotor teeth into the chamber without cutting or wrapping the crop.

The MegaWide Plus pickups and spiral rotor are chain-driven for positive bale starts with cutout clutch protection. The pickup is being driven off the drive roll and bypasses the starter roll. This will allow for reduced wear and breakage of the starter roll chain.

Semi-pneumatic gauge wheels provide smooth ground gauging over uneven terrain and protection to the pickup.

• Stiffer rubber sidewalls
• No air pressure to maintain, which mean no flat tires
• Adjustable to meet pickup tooth-to-stubble height requirements

The pickup float springs are positioned for excellent flotation.

• Adjustable to meet varying field conditions
• Float springs only support the pickup reel
• Rotor assembly is fixed to the baler frame, eliminating additional weight on the pickup system

The adjusting crank positions the pickup to the desired operating height to match crop or field conditions.

An optional hydraulic pickup lift cylinder is available as an attachment.

• Makes raising for transport or clearing obstructions easy
• Crank handle serves as a down stop
• Adapts to regular, MegaTooth and MegaWide Plus pickups
• Hydraulic pickup lift comes standard on premium machines

‍

A silage-configuration baler allows the producer to put up silage hay. A silage configuration machine does not offer a precutter. There are three major components to a silage configuration baler: a staggered roller-auger kit (1), a starter roll-scraper knife, and a screen (2). The powered auger sits above the staggered roll on the baler to help keep wet hay from traveling up the belts and reduce buildup on the roll. The screen is bolted on the front of the baler as a safety feature. The knife/scraper is mounted in front of the starter roll to help prevent wrapping of wet crop on the starter roll.

The silage kit is offered as a bundle for field installation if the baler is not ordered as a silage-configuration machine from the factory. Attachment BE32442 is for 1.22-m (4-ft) wide machines and BE32443 is for1.52-m (5-ft) wide machines.

Also offered is a high-moisture kit. This kit does not include the same components that are on the silage-configuration balers. It offers the starter roll-scraper knife but does not include the staggered roll-auger kit. Attachment BE23828 is for 1.22-m (4-ft) machines and BE23829 is for 1.52-m (5-ft) machines.

Base equipment on: 450M Silage, 550M Silage, 460M Silage, 560M Silage, 450M Precutter, 460M/R Precutter and 560M/R Precutter.

Auxiliary take-up rolls prevent belt crossover and flipping in wet conditions. This roll is base equipment on all silage and precutter configuration balers. It also comes with the bale ramp bundle on the 440E and 450E Balers.

PRECUTTER CONFIGURATION

The 0 Series Round Baler family welcomes the first, John Deere, North-American built precutter. This feed system in front of these machines is the MegaWide HC2. The MegaWide Plus name is known as the industry-leading feed system since its introduction with the 7 Series Balers. John Deere continues that legacy with the 0 Series. Proven designs of the MegaWide were maintained and improvements were made to key components to gain significant capacity.

The MegaWide™ HC2 will only be available in a precutter configuration (available on the 450M, 460M, 460R, 560M, and 560R models):

• 1.22-m (4-ft) wide machines will have 14 knives
• 1.52-m (5-ft) wide machines will have 20 knives

The MegaWide HC2 has the same 2.2-m (7.22-ft) MegaWide Plus pickup from the 9 Series. Dry hay and silage 0 Series configurations will also have the MegaWide Plus pickup.

Mounted in front of the baler wheels and directly below the bale chamber, the pickup hugs the ground for clean crop retrieval. Hay movement is minimized.

• V-belt driven
• 450E and 450M Baler pickups are 116.6 cm (45.9 in.) wide
• 550M and 560M Baler pickups are 156 cm (61.4 in.) wide
• Large reel shaft and reel bearing

The small-diameter, low-profile pickup allows for good ground gauging and clean crop retrieval.

• Handles large, heavy windrows of hay and high-moisture crops
• Feeds hay directly to the forming chamber to reduce crop loss
• Low-profile pickup minimizes hay lift to reduce chaffing and retain hay quality

Side flares prevent hay from blowing off the pickup ends, which reduces hay loss.

The closely-spaced pickup teeth extend to the baler side sheets to help build straight-edged bales.

Standard on regular pickups, compressor rods are contoured to control hay over the pickup radius for positive feeding. The compressor rack can be adjusted upward or downward to match the volume of material in the windrow and can be easily removed to match crop conditions.

The adjusting crank positions the pickup to the desired operating height to match crop or field conditions.

An optional hydraulic pickup lift cylinder is available as an attachment.

• Makes raising for transport or clearing obstructions easy
• Crank handle serves as a down stop
• Adapts to regular and MegaWide™ Plus pickups
• Hydraulic pickup lift comes standard on premium machines

NOTE: Crank is not an option for the MegaWide High Capacity and Cutting (HC2) feed system.
